HYDAC Oil filter Element 0140D010BH4HC
|Payment Type:||L/C,T/T,D/P,Paypal,Money Gram,Western Union|
|Terms of Trade:||FOB,CFR,CIF,EXW,FCA,CPT,CIP|
|Min. Order:||200 Piece/Pieces|
|Delivery Time:||10 Days|
|Packaging:||Plywood box or standard export packing|
|Place of Origin:||XINXIANG, CHINA|
Model No.: FST-RP- Oil Filter Element 0140D010BH4HC

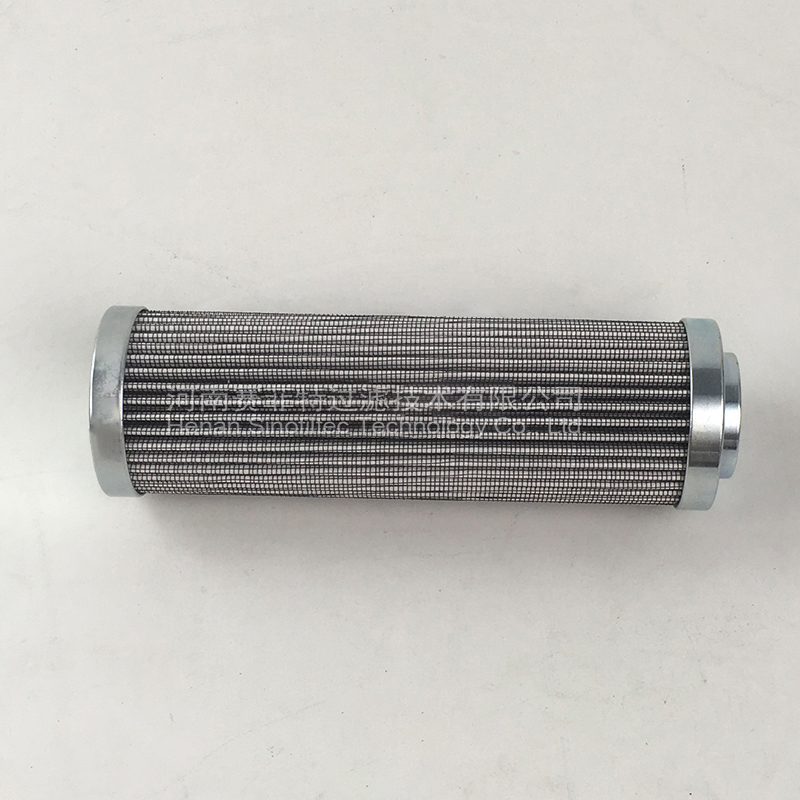

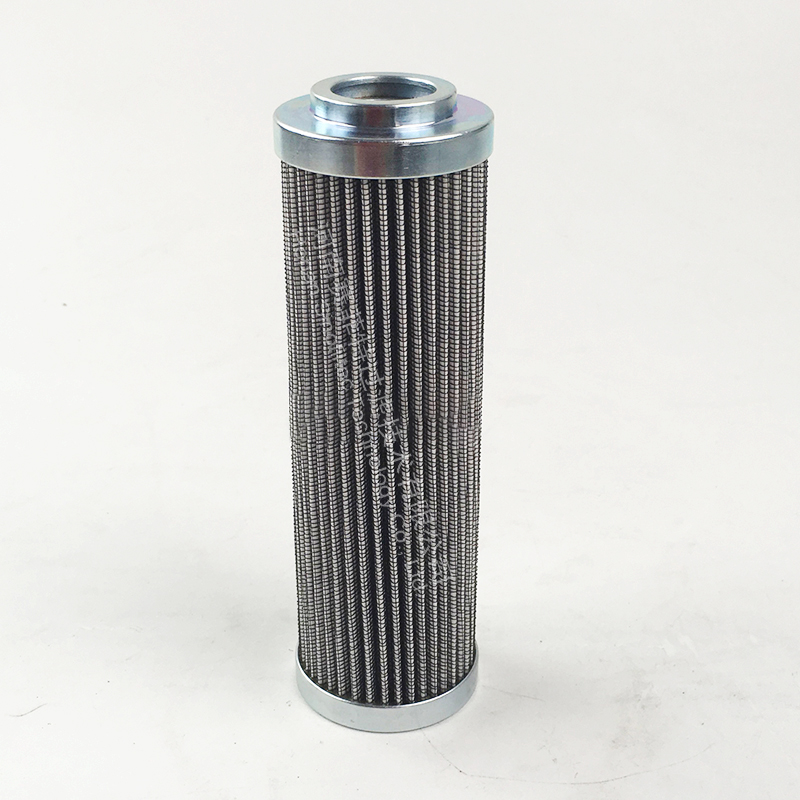

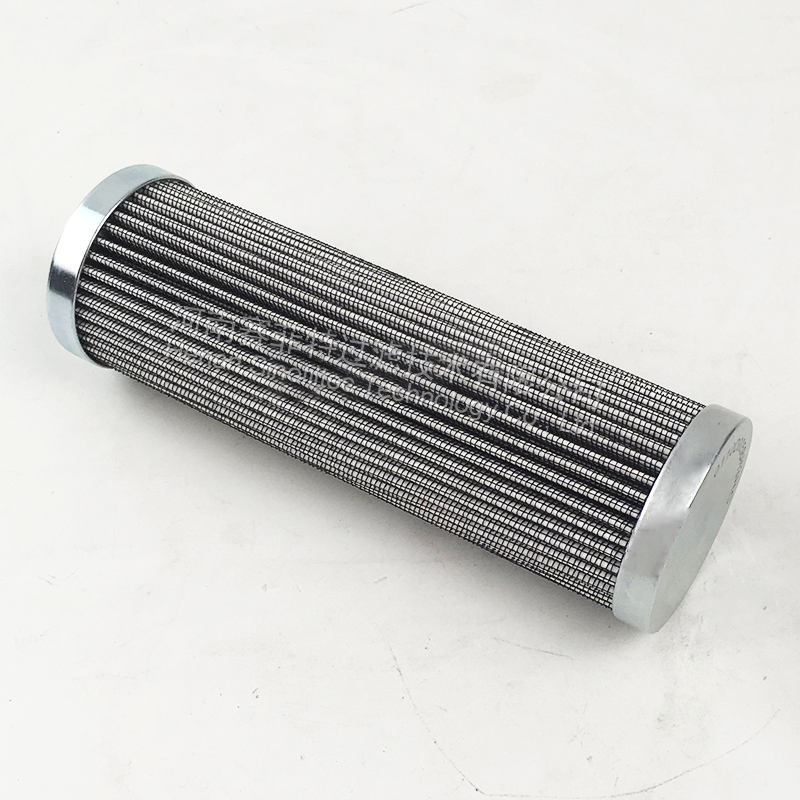

HYDAC Oil filter Element 0140D010BH4HC (FST-RP- Oil Filter Element 0140D010BH4HC):
The filter element(0140D010BH4HC) belongs to one of the series of high pressure pipeline filters of hydac Company. It belongs to high pressure filter element.
The most high pressure burst strength can withstand 210 bar. it has high filtration ratio and high value stability, and it is within the range of rated pressure. The high value is almost unchanged. At the joint of corrugated filter material, v-shaped bonding process is adopted, the inherent strength of the material and the strong structural support on both sides of the filter element are adopted. The pressure difference is allowed to fluctuate in a wide range Can be used according to different requirements, can use stainless steel mesh, sintered felt filter and so on. The filtering accuracy can be selected from 1 ,3 , 6 , 12,25 microns.
Characteristics and advantages:
With reasonable combination, the filtration effect is better, high pressure collapsibility and high circulation. The filter element of 0140D010BH4HC series instead of hydac has the same size and can completely replace the original product and achieve the original filter effect.
In the oil circuit of hydraulic system, metal powder and other mechanical impurities which are used to remove wear and tear of components in hydraulic system are used to keep the oil path clean, and the life of hydraulic system can be prolonged.
Filter element type High efficiency folding filter Filter medium Resin consolidated glass fiber high efficiency filter material mixed with Wire mesh Glass fiber filter material 1, 3, 5, 5, 7, 10, 12, 22 microns available Internal support and end cover material Metallized tin / reinforced nylon / stainless steel Working temperature -20℃~110℃ Working pressure 20Bar~210Bar
Filter element type
High efficiency folding filter
Resin consolidated glass fiber high efficiency filter material mixed with Wire mesh
Glass fiber filter material
1, 3, 5, 5, 7, 10, 12, 22 microns available
Internal support and end cover material
Metallized tin / reinforced nylon / stainless steel
(1) A new filter material specially made for filter element, multi-layer filtration structure ensures the ability of separation of high contamination and dirty pollution, uniform texture, corrosion resistance and fatigue resistance.
(2) innovating longitudinal joint technology and perfectly joining the end of filter material, especially under different loads, the effective value can prevent suspended particles from entering the filter zone from the dirt area.
(3) in the operation of filter element, the static electricity can be derived below the safe value, and the continuous formation of black carbon or the formation of silt oil can be excluded.
(4) the original imported filter media has uniform aperture, low resistance and large dust capacity.
(5) Germany imported composite filter folding machine to increase the effective filter area. (6) oil and temperature resistant cyclopropyl resin adhesive. The seal is firm.
(7) thickened steel plate skeleton. Strong pressure drop resistance.
(8) to leave the factory after passing the inspection. The quality is reliable.
1. Metallurgy: used for filtration of rolling mill, continuous casting machine hydraulic system and various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in refining and chemical production, filtration of oil well water and natural gas.
3. thermal power and nuclear power: gas turbine, boiler lubrication system, speed control system, bypass control system oil purification, feed water pump, fan and dust removal system purification.
4. all kinds of lifting, handling operations: lifting, loading and other engineering machinery to fire, maintenance, handling and other special vehicles, ship crane, anchor, blast furnace, steelmaking equipment, lock, ship door hoist, Theater's lift and lift stage, all kinds of automatic transmission line and so on.
ISO2491 filter-rupture resistance experiment:
The test of resistance to rupture of filter element belongs to the strength test of the filter element itself. The filter element is generally subjected to external force by the pressure difference limit after carrying the dirt in the filter shell. The inner skeleton is the main support of the filter layer under the limit pressure difference of the filter element, and the collapse of the skeleton will lead to the collapse of the filter layer.
ISO2492 filter element structural integrity experiment:
The significance of the requirement of the integrity of the filter element structure, the filter material is very good, the filter material is broken or made incomplete in the process of making the filter element, the incomplete phenomenon mainly manifests in: the filter material is damaged, the end cover is not glued strictly, the filter material butt joint is not strict and solid. It will greatly affect the original filtering accuracy.
ISO2493 filter element the compatibility betwee material and liquid experiment:
The compatibility test between filter element and working fluid is mainly a validation test of the properties of raw materials used in the process of making filter elements, such as compatibility with petroleum, water diol, water-oil emulsion and liquid with high water content. PTFE seals are standard configurations and can be used in conjunction with industrial phosphate, diesters and specific synthetic materials.
ISO3726 filter element experimental method of the end load:
The end load test of the filter element mainly tests the ability of bearing the axial mounting force, the strength, the axial load, the flattening strength and so on.
ISO3724 filter element the determination of fatigue characteristics:
The test of the fatigue characteristics of the filter element is the test of the life of the filter element. The filter element works in the hydraulic system, withstanding the reciprocating and alternating fluid flow of the system and the pressure impact of the working flow. Under this impact, if the filter element has accumulated pollutants and established a greater pressure difference, then the pressure of the filter layer withstanding the fluid flow will be greater.
ISO3968 filter element determination of flow characteristics and the pressure difference:
The pressure drop flow characteristic is usually an assessment of the filter, but in fact, it mainly evaluates the flow rate and resistance of the filter core. Of course, in the design of filter assembly, there are flow and bypass problems in the channel design of the shell. But after all, it is not the main problem, the main problem is the filter, so the standard mainly checks the filter, not the filter.
The replacement of HYDAC company hydraulic filter type Series: (FST- RP-xxxxxxxx):
Henan Sinofiltec Technology Co.,Ltd
Sinofiltec technology Co. Ltd, which is a professional manufacture & exporter of filter medium, filter cartridges and filtration equipments we have developed series of filters for the industrial fluids polluted, which are based on the requirements for the filtration on the aerospace and military equipments.
From the filter medium, filter cartridges and strainers to the filtration systems, we have the technical and production departments for the process, there will be a dynamic tracking management for the whole process.
We will strictly implement the international standards of the filter medium, filters and equipments We will design, develop and produce according to the fluids, working conditions and the special requirements of the customers.
There are three series of products such as water filters, air filters and hydraulic filters With nearly 30 years development, our products have been sold widely at home and abroad, which are deeply trusted by our customers.
We offer the high quality filters and filtration projects for global customers. To save the expensive operating cost for our customers.
Sinofiltec technology Co.. Ltd would like to comunicate and cooperate with customers widely at home and abroad, and truly to create more value for our customers, truly to achieve the best use of things & the value for money.
